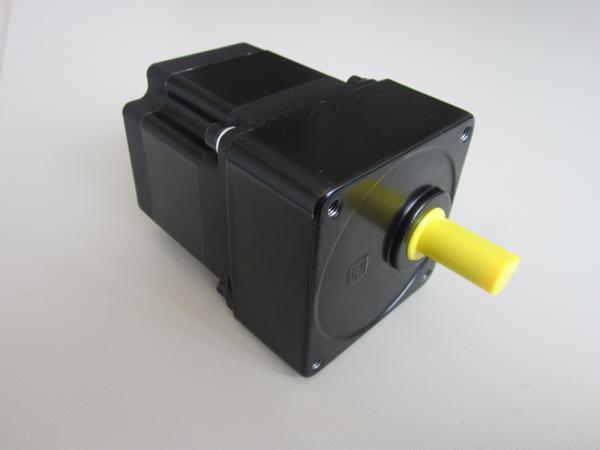

86mm bürstenloser Motor mit dem Stirnradgetriebe

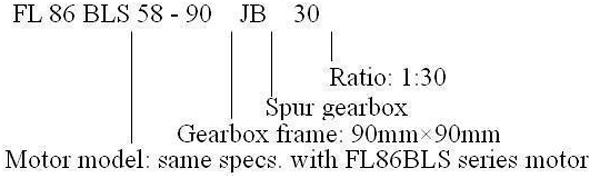

Beschreibung des Modells
| Verhältnis | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 |
| Gewicht | 1.3kg | 1.5kg | ||||||||||||||||||
| Anzahldes Getriebszüge | 2 | 3 | 4 | |||||||||||||||||
| Nenndrehmoment | 30N·m | |||||||||||||||||||
| Max. Drehmoment | 45N·m | |||||||||||||||||||
| Efficiency | 81% | 73% | 66% | |||||||||||||||||
| Durchschnittliches Leerlauf-Flankenspiel | 4 deg | 3.5deg | 2.5deg | |||||||||||||||||
| Verhältnis | 3 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | |
| FL86BLS58 -90JB |
Nenndrehmoment (N·m) | 0.85 | 1.42 | 1.70 | 2.13 | 2.55 | 2.84 | 3.54 | 4.25 | 4.60 | 5.11 | 6.38 | 7.67 | 9.20 | 9.24 | 11.6 | 13.8 | 17.3 | 20.8 | 23.1 | 27.7 |
| Nenndrehzahl (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83.3 | 75 | 60 | 50 | 40 | 33.3 | 30 | 25 | |
| Max. Drehmoment (N·m) | 2.55 | 4.25 | 5.10 | 6.38 | 7.65 | 8.52 | 10.6 | 12.7 | 13.8 | 15.3 | 19.1 | 23 | 27.6 | 27.7 | 34.8 | 41.4 | 45 | ||||
| FL86BLS71 -90JB |
Nenndrehmoment (N·m) | 1.70 | 2.84 | 3.4 | 4.25 | 5.10 | 5.67 | 7.08 | 8.50 | 9.20 | 10.2 | 12.8 | 15.3 | 18.4 | 18.5 | 23.1 | 27.7 | --- | --- | --- | --- |
| Nenndrehzahl (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | 83.3 | 75 | 60 | 50 | --- | --- | --- | --- | |
| Max.Drehmoment (N·m) | 5.1 | 8.52 | 10.2 | 12.7 | 15.3 | 17.0 | 21.2 | 25.5 | 27.6 | 30.6 | 38.4 | 45 | --- | --- | --- | --- | |||||
| FL86BLS98 -90JB |
Nenndrehmoment (N·m) | 3.4 | 5.67 | 6.80 | 8.50 | 10.2 | 11.3 | 14.2 | 17 | 18.4 | 20.4 | 25.5 | 30.6 | --- | --- | --- | --- | --- | --- | --- | --- |
| Nenndrehzahl (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | 120 | 100 | --- | --- | --- | --- | --- | --- | --- | --- | |
| Max. Drehmoment (N·m) | 10.2 | 17.0 | 20.4 | 25.5 | 30.6 | 33.9 | 42.6 | 45 | --- | --- | --- | --- | --- | --- | --- | --- | |||||
| FL86BLS125 -90JB |
Nenndrehment (N·m) | 5.1 | 8.5 | 10.2 | 12.7 | 15.3 | 17.0 | 21.2 | 25.5 | 27.5 | 30.6 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| Nenndrehzahl (RPM) | 1000 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 167 | 150 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | |
| Max. Drehmoment (N·m) | 15.3 | 25.5 | 30.6 | 38.1 | 45 | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | ||||||
Zugehörige Namen
Bürstenloses elektrisches Gerät mit dem Getriebe | Getriebemotor ohne Bürste
